Our Services
Milling

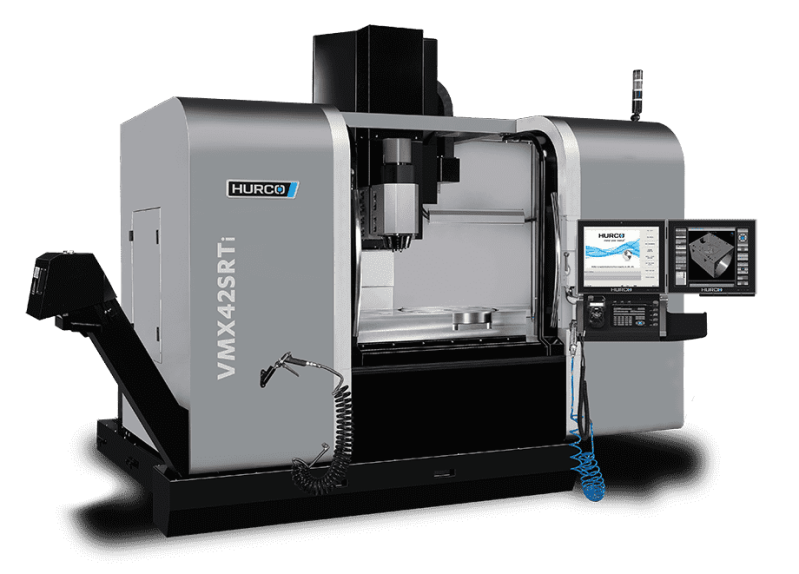

Hurco VMX42SRTi
X,Y,Z Axis Travel; 1067mm x 610mmx 610mm
B, C Axis travel, +/- 92°, 360°
Spindle: Max Spindle speed 12,000rpm; Peak spindle motor, 40hp @ 2,900rpm.
Table size 1,270mm x 610mm
Turning

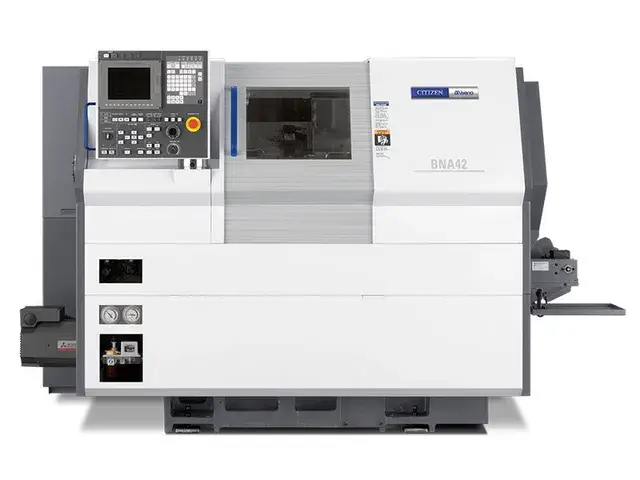

Miyano BNA 42S - Max Bar 42mm
Twin Spindle
Max. Speed 5000(rpm)
8 Turret Positions
CNC LATHE-MAKAMURA AS200L
Spindle speed 6000min-1
Milling and Turning capability
CMZ TB67
10" Chuck
Max Billet 250mm
Max Length 350mm
Max. Spindle speed 4000 (rpm)
12 Turret Positions
EDM (Electrical Discharge machining)
Robofil FI 440ccs
Machine capacity X, Y, Z travel 550mm x 350mm x 400mm
U, V travel 550mm x 350mm
Max Taper +/- 30 Degrees at 400mm
Inspection
Production Control is backed by our fully equipped Metrology department to ensure that stringent quality standards are met and maintained.
ISO 9001:2015 accreditation ensures that all work is controlled and monitored with an emphasis on continual improvement.
The following equipment is calibrated to meet with this standard:
-
✓ Mitutoyo Euro M574 CMM
-
✓ Digital Height Gauges
-
✓ Starrett 400 Optical Projector
- ✓Baty Fusion CNC CMM
-
✓ Micrometers / Bore Gauges
-
✓Other measuring equipment traceable to National Standards
Mitutoyo coordinate measuring machine
Overall Measuring range: X = 500mm (19.69")
Y = 700mm (28.00")
Z = 400mm (15.75")
Baty Fusion CNC measuring machine
Overall measuring range: X = 250mm (9.84")
Y = 120mm (4.73")
Z = 150mm (5.91")
